4" Voda Self-Cleansing Filter

URING 01 · F4i-F  /  LRING 01 · F4i-F  ·  Green Master Harvest Sdn Bhd Design Flow 209 L/min
4" Voda Self-Cleansing Filter — wall-mounted with 4" RWDP, side outlet to tank

Voda 4" Self-Cleansing Filter

Inline rainwater-harvesting filter for 4" downpipes. Stainless-steel 250 µm cylindrical mesh, EPDM deflection rings, harvest outlet to tank. Sized for the worst-day Selangor storm — 209 L/min peak inflow on a 500 sq.ft (46.5 m²) clay-tile catchment.

→ Flow Data 3D Cutaway Live Sim ↓ Section Drawing

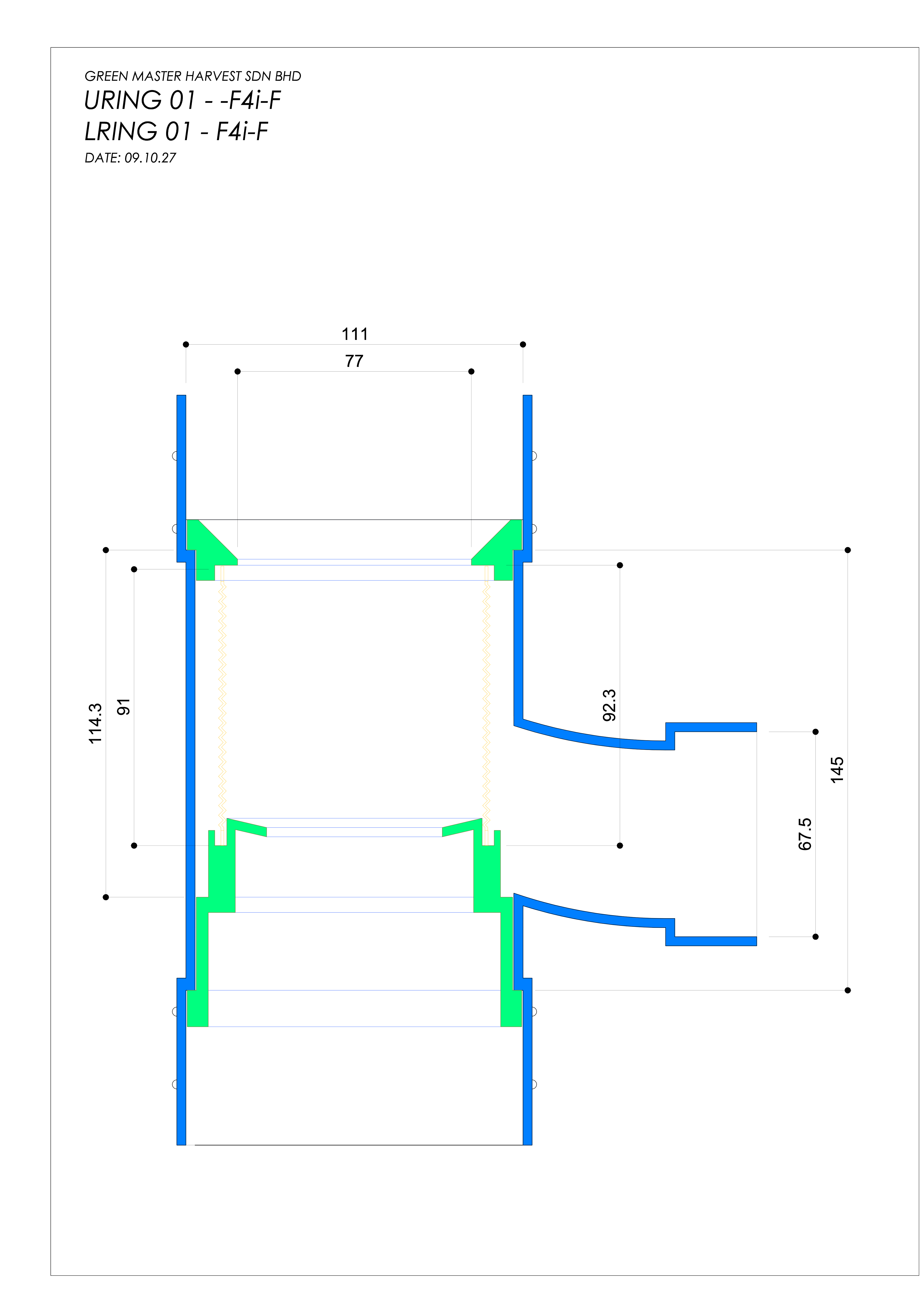

Cross-section · Dimensions in mm
4-inch Voda Self-Cleansing Filter cross-section drawing
